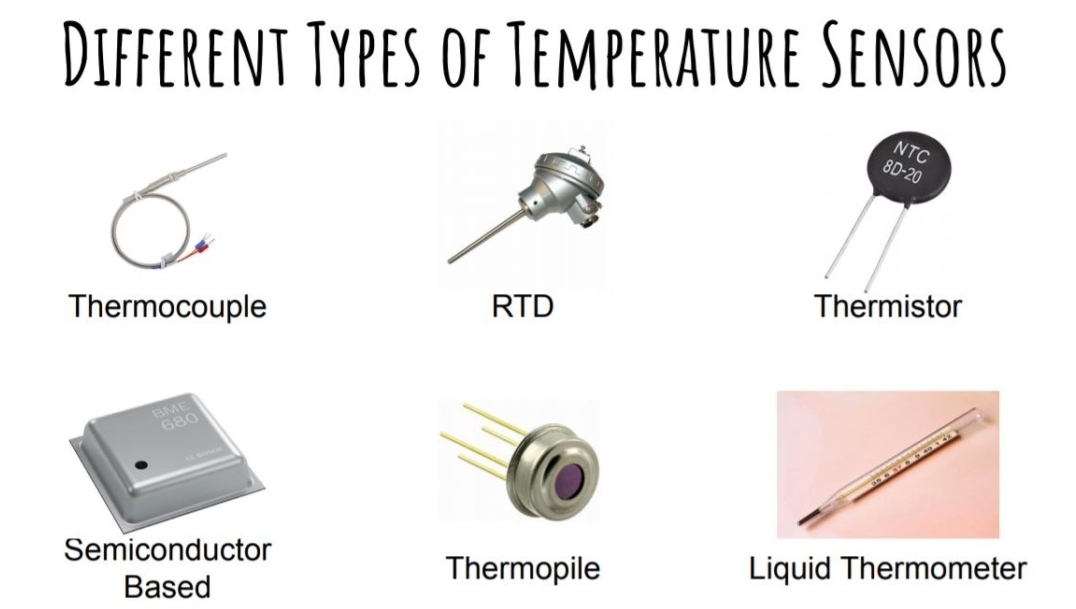

Temperature sensors are vital components in many industries, from manufacturing and healthcare to electronics and automotive systems. They measure temperature by converting it into a readable electrical signal, helping systems to monitor and control temperature accurately. At Focusens, we specialize in providing high-quality temperature sensor types designed to meet the needs of a wide variety of applications. Let’s take a look at the most common temperature sensor types and their uses.

1. Thermocouples

Thermocouples are one of the most widely used temperature sensor types. They consist of two different metal wires joined at one end. When the junction of these metals is heated or cooled, it generates a voltage that corresponds to the temperature. The voltage can then be measured and translated into temperature readings.

Advantages of Thermocouples:

• Wide Temperature Range: Thermocouples can measure very high temperatures (up to 1800°C) and low temperatures (as low as -200°C).
• Fast Response Time: Thermocouples are known for their quick response to temperature changes, making them ideal for dynamic environments.
• Durability: These sensors are highly durable and can withstand harsh conditions.

Applications:

• Industrial equipment
• Furnace and oven monitoring
• Temperature measurement in automotive systems

2. RTD Sensors (Resistance Temperature Detectors)

RTD sensors are temperature sensors that measure temperature by correlating the resistance of the RTD element with temperature. Most RTDs are made from pure platinum, as its resistance increases in a nearly linear fashion with temperature, making it ideal for precise measurements.

Advantages of RTD Sensors:

• High Accuracy: RTD sensors are highly accurate, offering precise temperature measurements.
• Stability: They offer long-term stability and are less affected by changes in environmental conditions.
• Wide Temperature Range: RTDs are ideal for applications requiring a wide operating temperature range, typically from -200°C to 850°C.

Applications:

• Laboratory equipment
• HVAC systems
• Food processing
• Automotive systems

3. Thermistors

Thermistors are temperature sensors that work based on the principle that the resistance of a material changes with temperature. Thermistors typically have a higher degree of sensitivity than RTDs or thermocouples, making them ideal for more precise measurements in specific temperature ranges.

There are two main types of thermistors:

• NTC (Negative Temperature Coefficient): Resistance decreases as temperature increases.
• PTC (Positive Temperature Coefficient): Resistance increases as temperature increases.

Advantages of Thermistors:

• High Sensitivity: Thermistors provide more precise temperature readings in narrow temperature ranges.
• Cost-Effective: They are more affordable than other temperature sensor types.
• Small Size: Their small size makes them ideal for applications where space is limited.

Applications:

• Household appliances (e.g., refrigerators, washing machines)
• Medical devices (e.g., thermometers)
• Battery management systems
• Automotive temperature monitoring

4. Infrared Temperature Sensors

Infrared (IR) temperature sensors are non-contact sensors that detect temperature by measuring the infrared radiation emitted by an object. These sensors are widely used for measuring the temperature of moving or hard-to-reach objects.

Advantages of Infrared Temperature Sensors:

• Non-Contact Measurement: No need to physically touch the object, making them ideal for hazardous or sensitive materials.
• Fast Measurement: They can measure temperature almost instantly, providing real-time data.
• Safe: They are safe to use in environments where traditional sensors might be damaged or dangerous to operate.

Applications:

• Medical thermometers (e.g., for forehead scanning)
• Industrial machinery monitoring
• Electrical systems
• Food industry

5. Bimetallic Temperature Sensors

Bimetallic temperature sensors use two different metals with different expansion rates that are bonded together. When the temperature changes, the metals expand at different rates, causing the bimetallic strip to bend. This bending motion is used to measure the temperature.

Advantages of Bimetallic Temperature Sensors:

• Simple Design: These sensors have a straightforward, mechanical design.
• Cost-Effective: Bimetallic sensors are relatively inexpensive.
• No Need for Power: They do not require an external power source to operate.

Applications:

• Thermostats
• HVAC systems
• Temperature switches in appliances

6. Semiconductor Temperature Sensors

Semiconductor temperature sensors are based on the properties of semiconductor materials, which change their electrical characteristics (like voltage or current) in response to temperature variations. These sensors are commonly found in integrated circuits (ICs) and are popular for their compact design and low power consumption.

Advantages of Semiconductor Temperature Sensors:

• Small Size: These sensors can be integrated directly into circuits, making them ideal for compact systems.
• Low Power Consumption: They require minimal power to operate, making them energy-efficient.
• Good Linear Output: The temperature-to-resistance relationship is highly linear, making it easy to interpret the data.

Applications:

• Consumer electronics (e.g., smartphones, tablets)
• Automotive systems
• Industrial monitoring systems
• Medical devices

Conclusion

Temperature sensors are crucial components in a variety of industries. Whether you need high-precision measurement for industrial applications or non-contact measurement for sensitive equipment, the right temperature sensor types will ensure optimal performance.

At Focusens, we specialize in providing top-quality temperature sensors including thermistors, RTD sensors, and more. Our sensors are designed for accuracy, reliability, and efficiency across many industries. No matter your application, we have the right solution to help you maintain precise temperature control.

Feel free to contact us today to learn more about our range of temperature sensors and how they can enhance your projects.
