This practical guide helps procurement teams and engineers decide between NTC thermistor automotive parts and PTC thermistors. Learn how each sensor works, where to use it in cars and EVs, key specs to request, and how to source reliable parts for mass production.

Introduction — Why the Right Automotive Temperature Sensor Matters

Modern vehicles use dozens of temperature sensors. Battery packs, power electronics, motors, coolant and cabin systems all rely on accurate sensing. Choosing the right component reduces warranty risk, improves safety, and lowers system cost. The two most common thermistor families are NTC thermistors and PTC thermistors. Each serves distinct roles: NTC devices for precise measurement, PTC devices for protection and self-regulation.

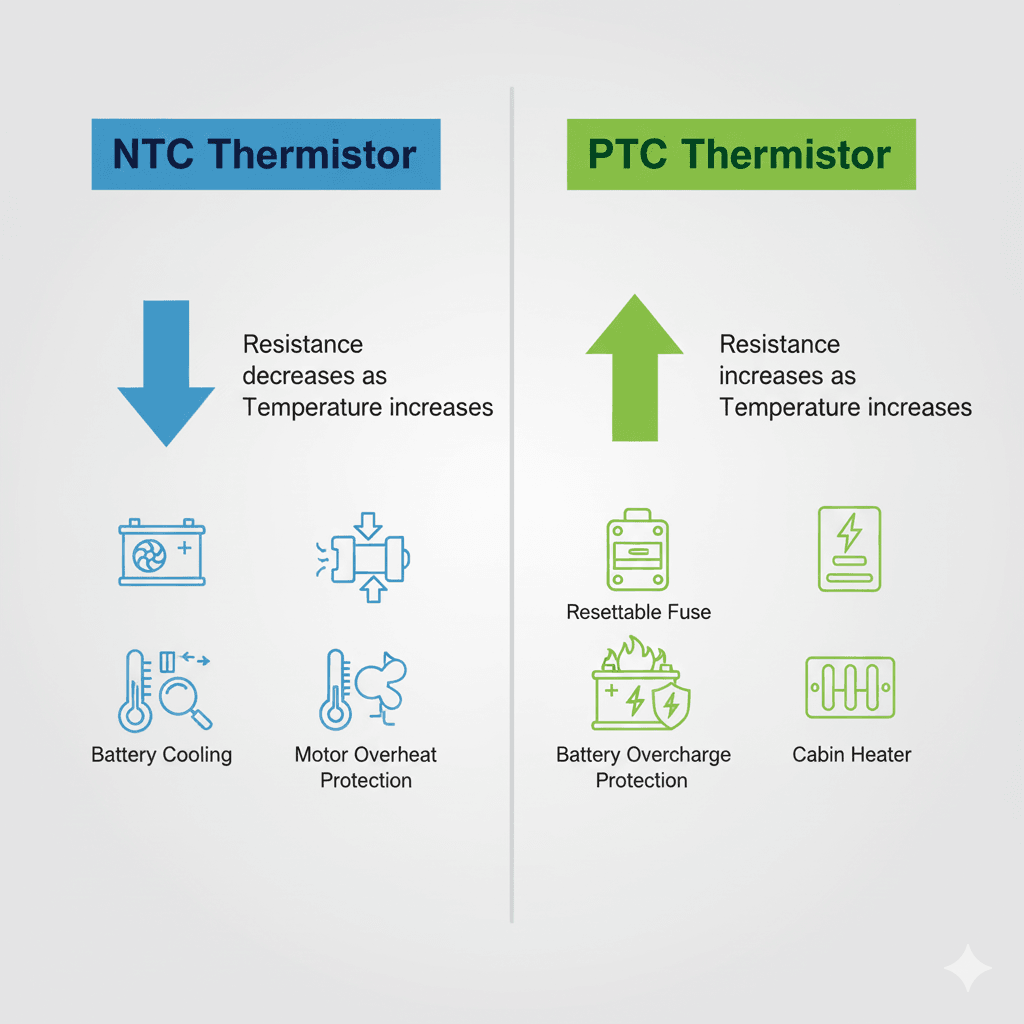

How NTC and PTC Thermistors Work

NTC Thermistor Basics

An NTC thermistor automotive device has a resistance that decreases as temperature rises. NTC materials are typically metal-oxide ceramics. They are highly sensitive at specific ranges and offer fine resolution for control systems. Typical uses include cell-level temperature monitoring in EV batteries, coolant sensing, and air temperature feedback for HVAC systems.

PTC Thermistor Basics

PTC thermistor devices increase resistance when temperature rises. Many PTC parts are designed to “switch” around a threshold, which makes them useful as resettable fuses, inrush current limiters, or self-regulating heating elements. In automotive systems, PTC thermistors are commonly found in motor protection circuits, cabin heaters, and pre-charge applications.

Technical Comparison: Key Parameters Buyers Need

When sourcing sensors, buyers must compare parameters rather than brand claims. Below are the technical factors that matter most.

Temperature Range and Stability

NTC thermistors usually operate accurately between −55°C and +150°C, with some specialized types rated to wider extremes. PTC parts used for protection can tolerate higher surface temperatures but are specified by switching thresholds rather than linear accuracy.

Accuracy and Sensitivity

High-grade NTC thermistors can achieve accuracy in the range of ±0.1–±0.5°C in targeted bands. For precise cell monitoring in EVs, procurement teams often require ≤±0.2°C. PTC thermistors are not typically selected for high-precision measurement; they are chosen for predictable resistance jumps at defined temperatures.

Response Time

Smaller thermistor beads and thinner encapsulation yield faster response times—important for battery safety. For fast detection, choose low thermal mass NTC parts. For protection roles, the response of PTC devices must match expected surge and heating profiles.

Linearity and Signal Conditioning

NTC thermistors are non-linear. Systems either use lookup tables or apply curve linearization like the Steinhart–Hart equation. Ensure your BMS or ECU firmware supports this. PTC thermistors are simpler to use when acting as switches or current limiters.

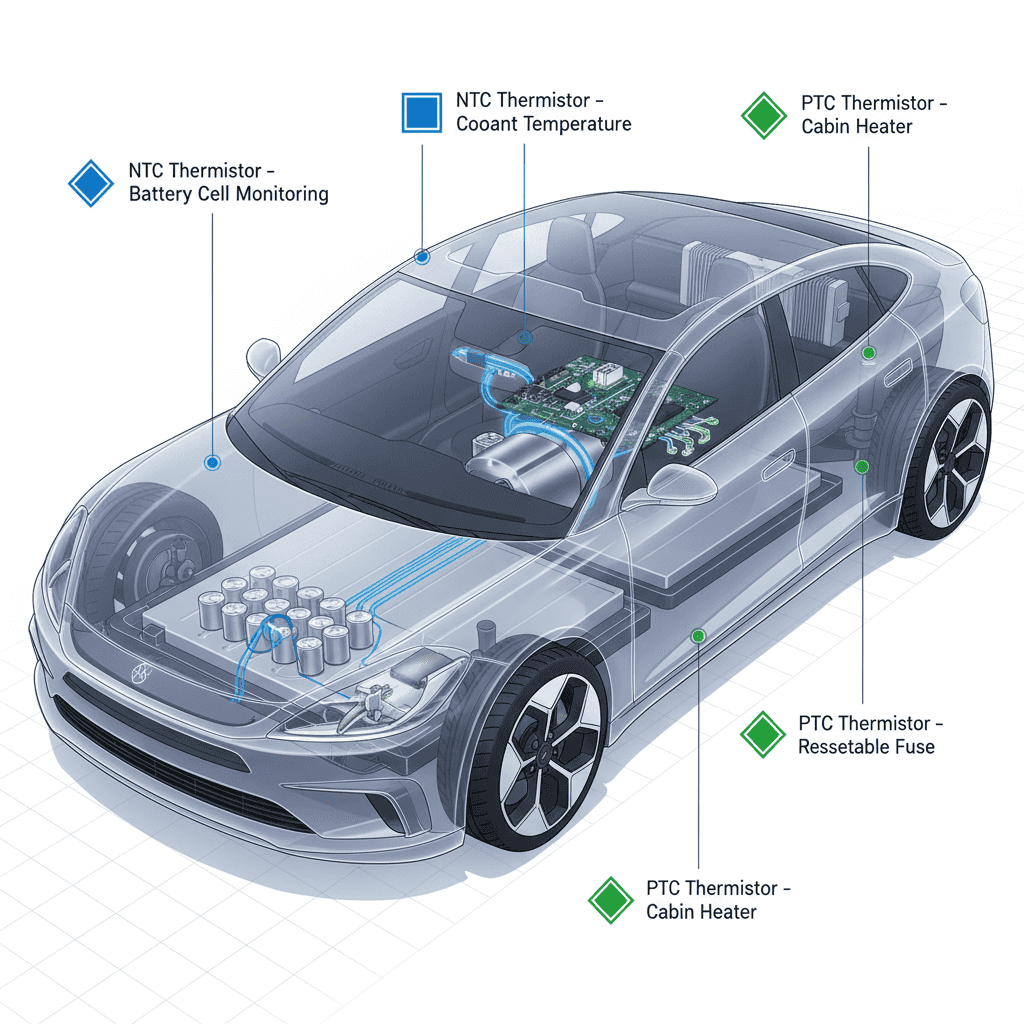

Where to Use NTC vs PTC in Vehicles

Battery Management Systems (BMS)

BMS designs demand high accuracy at cell level. An NTC thermistor automotive sensor mounted close to cells gives fast, precise readings for thermal balancing and charging control. For cell heating (to operate efficiently in cold climates), PTC heaters might be used—but the measurement remains NTC based.

Motor & Inverter Protection

Motor windings and inverter modules benefit from PTC sensors embedded in windings or housings. The PTC’s rising resistance can serve to trigger protective logic or disable the drive when temperatures exceed safe limits. In many motor designs, a PTC acts as a direct trip element for overtemperature.

HVAC & Cabin Climate

Cabin air and evaporator sensors often use NTC thermistors for temperature feedback. Seat heaters and supplemental cabin heaters may incorporate PTC elements for safe, self-limiting heat output.

Procurement Checklist for Automotive Buyers

Use this checklist when evaluating suppliers and parts:

• Confirm the resistance value at 25°C (e.g., 10 kΩ @25°C) and Beta coefficient.
• Verify accuracy tolerance and calibration method.
• Check response time for the intended mounting and packaging.
• Request AEC-Q200 or equivalent automotive qualification where required.
• Confirm material and encapsulation (glass bead, epoxy, threaded probe, etc.).
• Ask about batch testing and traceability—2×100% testing is preferred for mission-critical parts.
• Evaluate supplier readiness for volume production and lead time commitments.

2025 Market Trends & What Buyers Are Asking For

In 2025 procurement teams in the U.S. and Europe show consistent preferences:

• Higher sample availability and short pilot runs.
• Digital sensor options (NTC with integrated digital interfaces) to reduce ADC complexity.
• Clear compliance documentation for EU battery regulations and automotive standards.
• Custom probe assemblies to match mechanical mounting and EMI needs.

Chart: Procurement Priorities (2025)

Common Questions from OEM and Tier-1 Buyers

Q: Can one sensor type replace the other across systems?

A: No. NTC thermistor automotive parts and PTC thermistors serve complementary roles. Measurement needs demand NTC. Protection and self-limiting heating need PTC. Many vehicle systems use both.

Q: How do I handle NTC non-linearity?

A: Use the Steinhart–Hart equation or precomputed lookup tables. Modern BMS firmware supports this easily. If you prefer a simpler path, request calibration from the supplier at the part level.

Q: What certifications should I require?

A: For automotive applications request AEC-Q200 or equivalent test reports, ISO 9001 production evidence, RoHS/REACH material declarations, and test records for thermal cycling, vibration and salt spray when applicable.

Why Choose Focusensing for Thermistor Supply

Focusensing is a China-based factory specializing in resistance temperature sensors including NTC, PTC, RTD and digital sensors. The company focuses on B2B customers and offers customization, small-batch prototyping, and volume supply. Key advantages include:

• Wide product range: NTC thermistor automotive parts, PTC protection elements, threaded probes and digital probe modules.
• Customization: lead length, connector options, insulation materials, and special calibration curves.
• Quality control: batch testing, traceability and support for automotive qualification.
• Global experience: exports to Europe and the U.S., with support for EU and US regulatory needs.

See Focusensing product pages for details and datasheets: NTC thermistor catalog, PTC thermistor catalog, and custom temperature sensors.

Case Study: EV Battery Pack Integration

A mid-size EV maker integrated high-precision NTC thermistors into cell modules. By specifying 10 kΩ @25°C NTC beads with ±0.2°C tolerance and glass bead encapsulation, the OEM improved thermal balancing during fast charge events and reduced temperature spread by 18%. Combined with faster BMS response logic, the pack achieved higher charge speed with no increase in thermal incidents.

Practical Selection Checklist (Printable)

1. Define application: measurement vs protection.
2. Set target accuracy (e.g., ±0.2°C for cell monitoring).
3. Pick packaging: bead, probe, or surface mount.
4. Request test reports: thermal cycle, vibration, shock.
5. Ask supplier for calibration tables and sample parts.
6. Confirm lead times and batch testing procedures for production.

Further Reading & Authoritative Resource

For technical background on thermistor behavior and design, see Digi-Key’s primer: Digi-Key — Temperature Sensors & Thermistors. This resource provides practical formulas, circuit examples, and application notes that help engineers implement thermistors correctly.
